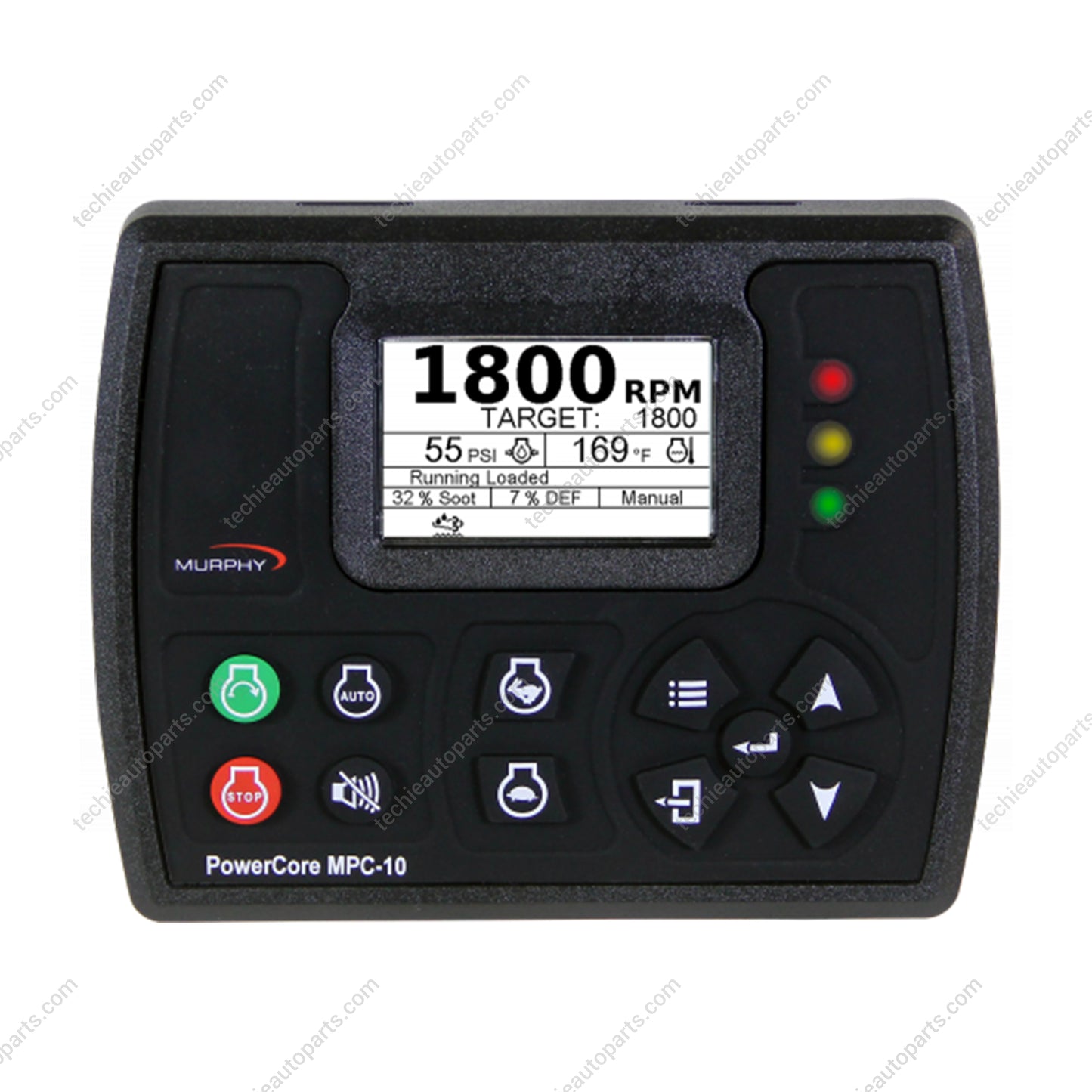

This powerful controller is a universal controller for mechanical or electronic engine applications requiring manual/auto start and manual/auto throttling. It supports the J1939 CAN protocol for electronically governed engines, as well as I/O interfaces for mechanical engine fault and safety shutdown. The MPC-10 has three levels of menu security, making it ideal for rental fleet protection and can be easily set up via the configuration tool. It is suitable for all weather environments and is also available as a ML 1000-4X panel solution. The menu structure is extremely user-friendly and many parameters and settings can be changed from the panel if required, without the need for PC tools
While reprogrammable, the MPC-10 follows a standard operating sequence. This operating sequence is a set of 22 machine states that happen in a predetermined order. Machine states can be set to zero if not needed or adjusted to fit the application. The MPC-10 boasts three levels of menu security which can easily be set with the configuration tool. The menu structure is incredibly versatile, with the ability to change many parameters and settings from the face without the need of a PC tool, if desired.
The MPC-10 is flexible in many aspects, with the ability to:
Use the same controller on 12VDC or 24VDC systems
Assign multiple levels of passcode protection to the menu using the free of charge PC Configuration Tool
1. Change the input sensor type for the analog inputs
2. Use analog inputs as digital ground inputs
3. Be mounted in all-weather environments
4. Be customer mounted in panel of choice
Features:
1. Operates with 12VDC or 24VDC systems
2. Large, Easy-To-Read 2.7-inch WQVGA Monochrome HR-TFT Display(400x240)
1. Three Configurable Levels of Passcode Protection
2. Flexible Input Sensor Types For the Analog Inputs
3. Analog Inputs Can Be Used as Digital Ground Inputs
4. Designed For All Weather Environments
5. CAN J1939 Communications
6. Tier 4/Stage IIIB/IV Ready
There are three main models
1. MPC-10 - MPC-10: PowerCore™ Controller (murcal.com)
Does not use 21 & 31 pins connectors. Uses Deutsch DT06-12 Series connectors.
2. TEC-10 - PowerCore® TEC-10 Panel (murcal.com)
Uses the 21 & 31 pin connectors, plus it is weather sealed.
3. ML-1000 - ML1000-4X: MurphyLink® Series Panel (murcal.com)
Uses the 21 & 31 pin connectors plus it is “super” weather sealed using the NEMA 4X Enclosure.
Display:
Monochrome HR-TFT
2.7 in./ 68 mm, WQVGA (400 x 240 pixels)
Languages: English, Spanish, German, French, Italian
(3) LEDs: green (mode), yellow (warning) and red (shutdown)
Operator controls:
(11) Raised silicone keypads, tactile feedback
Power Supply:
Operating Voltage: 8-32 VDC, reverse battery polarity and load dump protected
Cranking Power Holdup: 0 VDC up to 50 mS(also good for brownout/blackout instances)
Current consumption: Power on in stopped state; 117 mA at 12 VDC. Power on in standby mode; 52 mA at 12 VDC.
Inputs :
Digital, configurable (active on High, Low, Open)
Analog, configurable (4-20 mA, 0-5V, resistive or digital ground)
Frequency, supporting: Magnetic pickup (30 Hz - 10 kHz, 2.0 VAC-120 VAC) and Engine Alternator (30 Hz - 10 kHz, 4.5 VRMS - 90 VRMS)
Outputs :
Relay, Form C (dry / volt-free), 10A
Low-side FET (–DC), 1A
High-side FET (+DC), 1A
Dedicated Alternator Excitation, +DC, 1A
Communications:
CAN: J1939
RS485: Modbus RTU
USB 2.0B for Programming
Mating Connectors:
Deutsch:
Gray DT06-12SA-P012 (Wedge Lock W12S-P012)
Black DT06-12SB-P012 (Wedge Lock W12S-P012)
Green DT06-12SC-P012 (Wedge Lock W12S-P012)
USB 6 pin
Physical/Environmental:
Enclosure Material: Polycarbonate
Dimensions (WxHxD): 6.58 x 5.25 x 2.55 in. (167.09 x 133.29 x 64.81 mm)
Mass: 1lb. 1oz.
Weight: 4 lbs (1.8 kg)
IP rating: IP67 & IP69K, IP66 Panel Seal with Gasket
Operating Temperature: -40° to +85° C (-40° to 185° F)
Storage Temperature: -40° to +85° C (-40° to 185° F)
Vibration: 7.86 Grms (5-2000 Hz), 3-axis random
Shock: ±50G, 3-axis
Shipping Weight: 2lbs. 7.1 oz. (1.11 kg)
Shipping Dimensions: 8 x 8 x 5-11/16 in. (204 x 204 x 127 mm)
