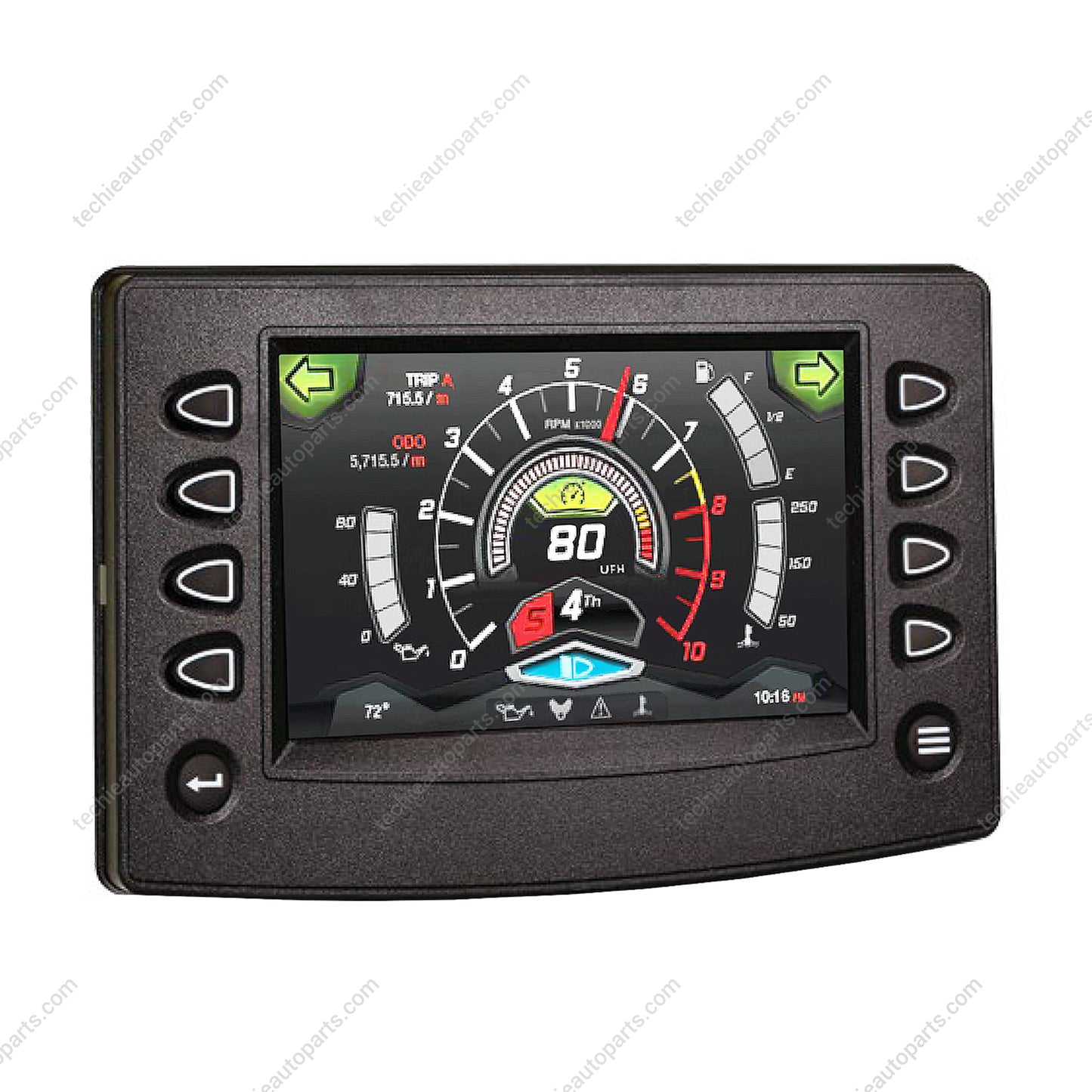

PV780 Standard PowerVie. Engine Interface Instrumentation Module. (78700560)
The PowerView 780 display is a full featured, configurable display that combines engine, transmission and diagnostic information into an easy-to-read operator interface.
Equipment functionality can be further integrated through the available I/O and controlled via the CANbus.
The PV780 features a full color, 7-inch bonded LCD for brighter, smoother graphics and best in class sunlight readability. The rugged design makes this display a great solution for extreme environments.
The PV780 display is compatible with PowerVision Configuration Studio which allows users to edit CAN parameters, add OEM branding and create custom equipment screens for a unique and sophisticated user interface.
Murphy's Configuration Studio software is available for purchase as an option. It is NOT included with your purchase of the PV780 display.
Features:
CAN-Based Display with Rich, Full-Color Graphics
Compatible With Both Mechanical and Electronic Engines
Tier 4/Euro Stage IV ready
Sunlight Readable LCD
Rugged Design for Extreme Environments
Multiple Languages
Optional, easy-to-use PowerView Configuration Studio software is offered as an add-on option
Technical:
Display 7” / 178mm color transmissive TFT LCD
Resolution WVGA, 800 x 480 pixels, 16-bit color
Aspect Ratio 16:9
Orientation Landscape or portrait
Backlighting LED, 400-500 cd/m2 (50,000 h lifetime)
Microprocessor Freescale™ i.MX357, 32bit, 532 MHz
Operating System QNX® Real-time Operating system
Flash Memory 2 GB
RAM 128 Mbytes SRAM
Clock Real-time clock with rechargeable battery back-up
Operating Voltage 6 - 36 VDC, protected against reverse polarity and load-dump
Power Consumption 10 W full backlight
22 W full backlight with heater (< -10º C)
CAN 2 CAN ports according to CAN specification 2.0B.
One port isolated according to NMEA 2000 (GPS)
RS-485 1 MODBUS Master / Slave port, PVA
Protocols J1939, NMEA 2000 (GPS), CANopen, Free Form CAN
Communications:
1.Connection (2) AMPSEAL 23pin
2.Keyboard 10 tactile pushbuttons
3.USB USB 2.0 host (full speed)
4.Inputs
（1）0-5 VDC analog inputs or resistive,
（2）input configurable to support
（3）measurement frequencies from 2 Hz-10 kHz,
（4）discrete digital (activehigh)
5.Video Input ：(optional) 3 NTSC/PAL
6.Output ：500mA; switched low-side, frequency
7.SD Storage (optional) For program updates, map data, diagnostic data storage
Landscape or Portrait
8.Mounting Options Front Mount, Back Mount
